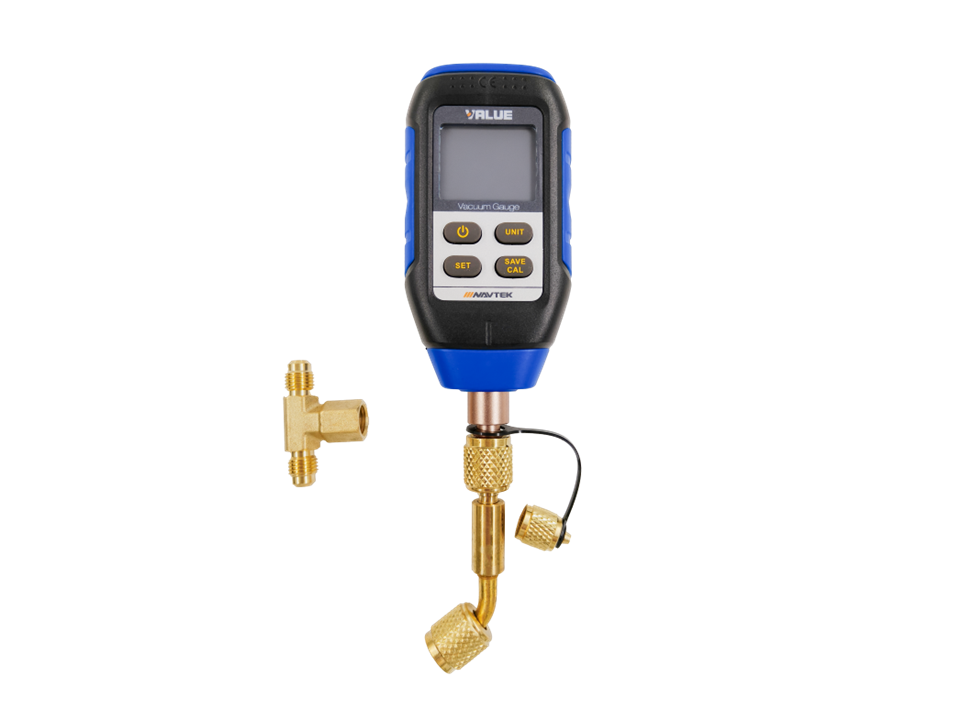

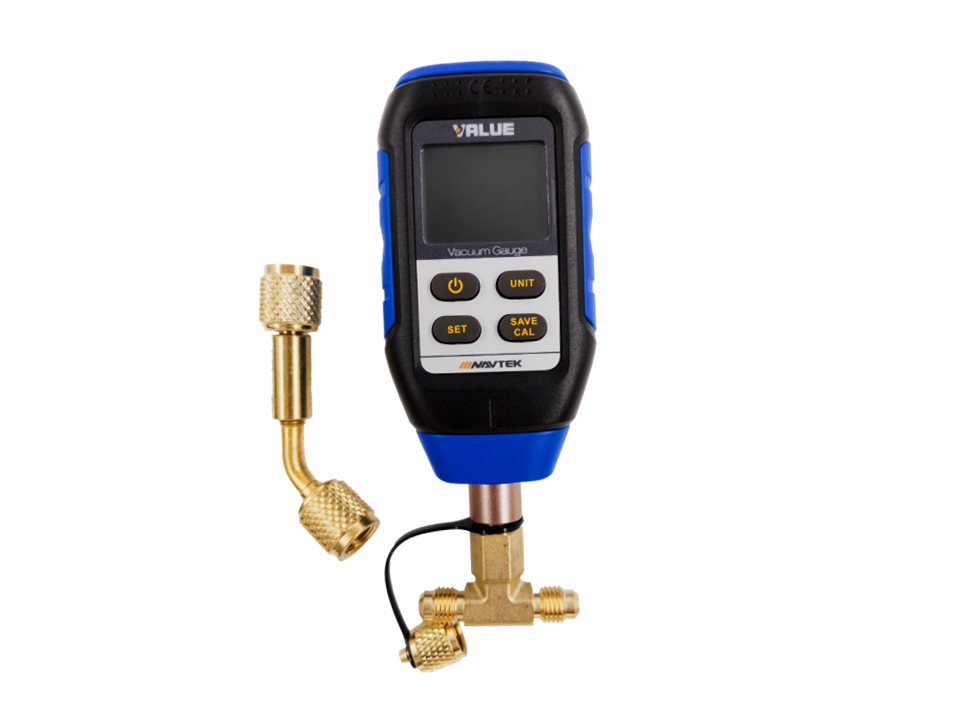

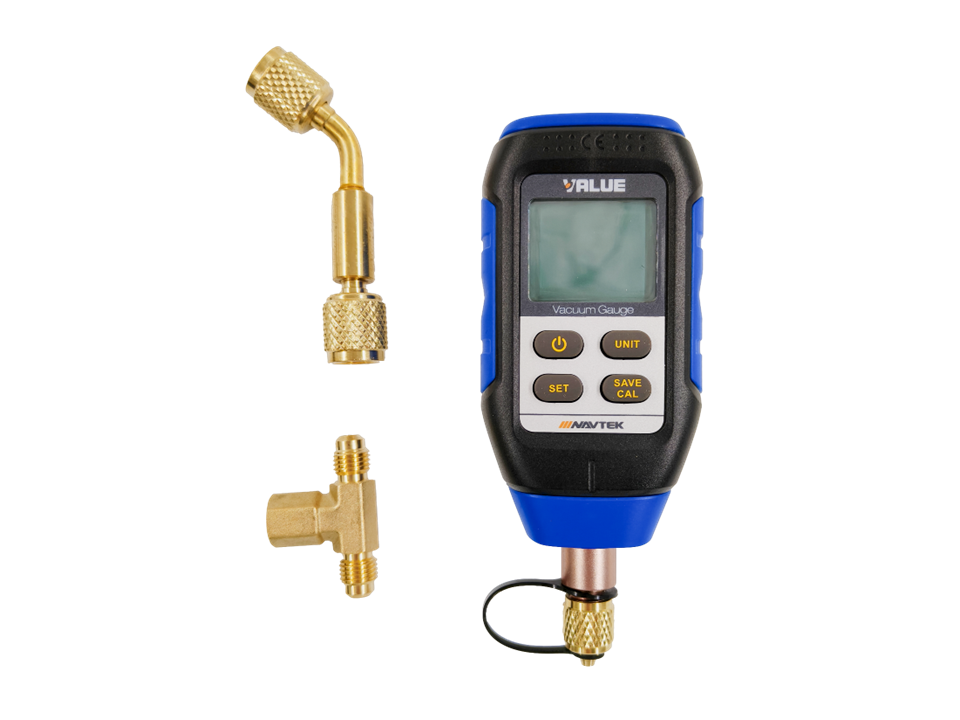

Vacuum gauge VMV-1
Price: 609,00 PLN
net*
Buy now!
It uses the Pirani high-precision vacuum sensor to precisely measure vacuum levels. Digital display affords a comprehensive view of vacuum conditions. When reaching the preset vacuum level, it will buzz as a reminder. When the vacuum level decreases from the pre-set vacuum level, it will buzz rapidly and flash the backlight to warn of leaks.
Technical data
| Maximum overload pressure | 14PSI / 0.1 Mpa |
| Range | 0-10000 Pa, 0-100.00 mBar, 0-75.000 mmHg, 0-75000 Microns |
| Resolution | 0.01 (<10 Pa), 0.0001 (<10 mBar), 0.0001 (<10 mmHg), 1 (<30000 Microns) |
| Accuracy | 2-100 Pa: ± 5% of reading (at 20° C) |
| Operating temperature | 0-50°C |
| Battery life | 45 hours (3x AA) |
| Units | Pa, mBar, mmHg, Mikrony |
| Sampling rate | 0.5 second |
| Ports | 1 x 1/4 SAE |
| Sensor | 1 x Pirani sensor |
| Automatic power-off | after 10 minutes |
| Backlight time | 20 seconds |
| Alarm buzz | 90 db, turns off after 10 seconds |
| Weight | 125g (without battery) |
