VA3-P7-EX (available soon)
Price: 2 452,00 PLN
net*

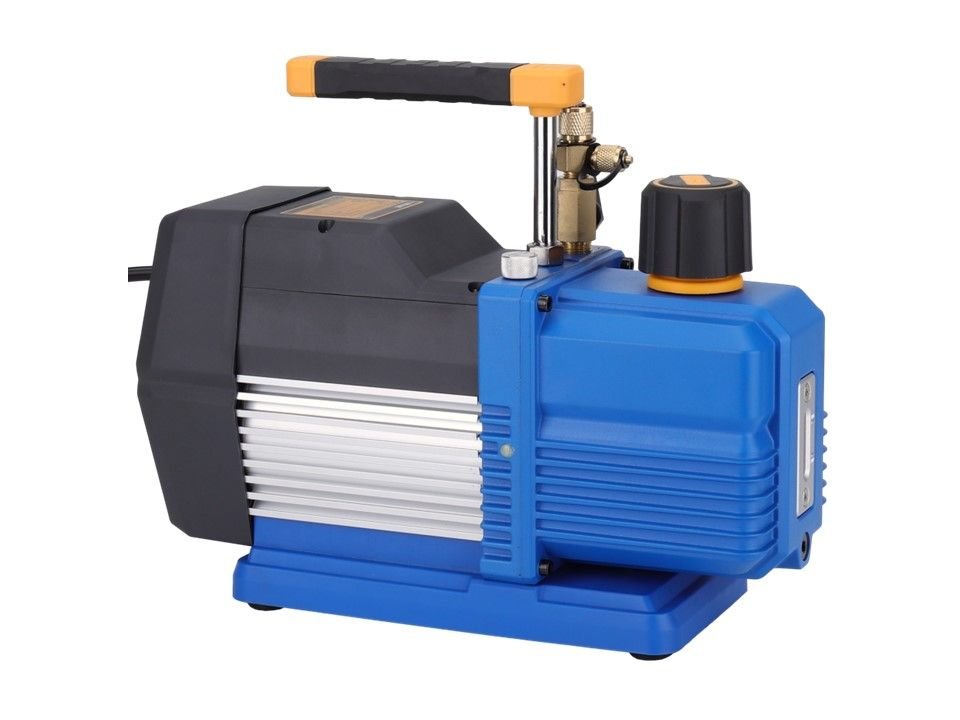

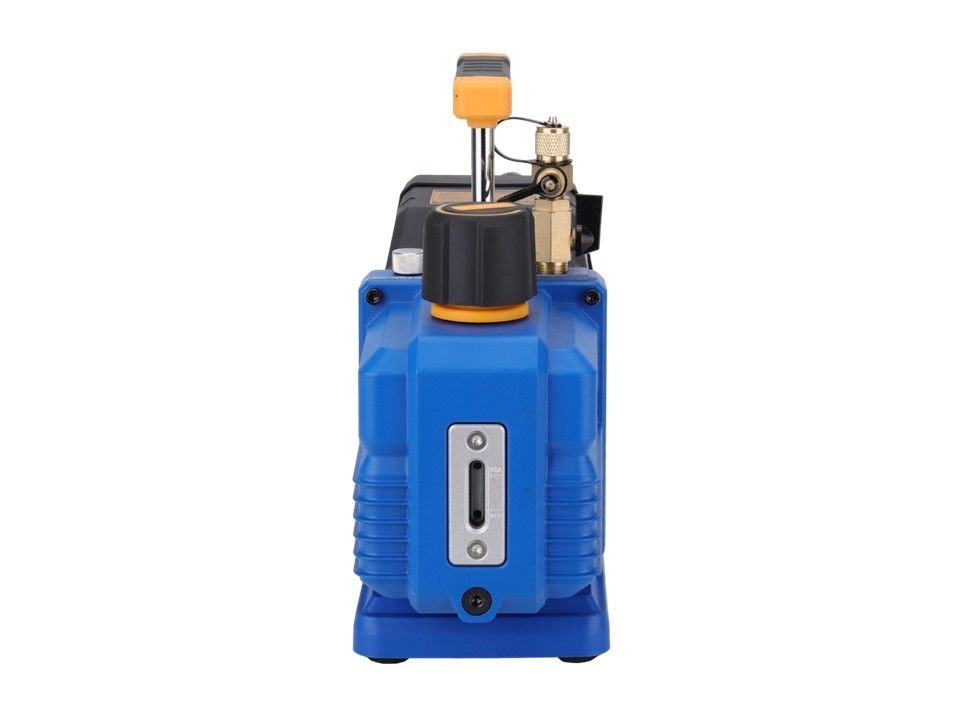

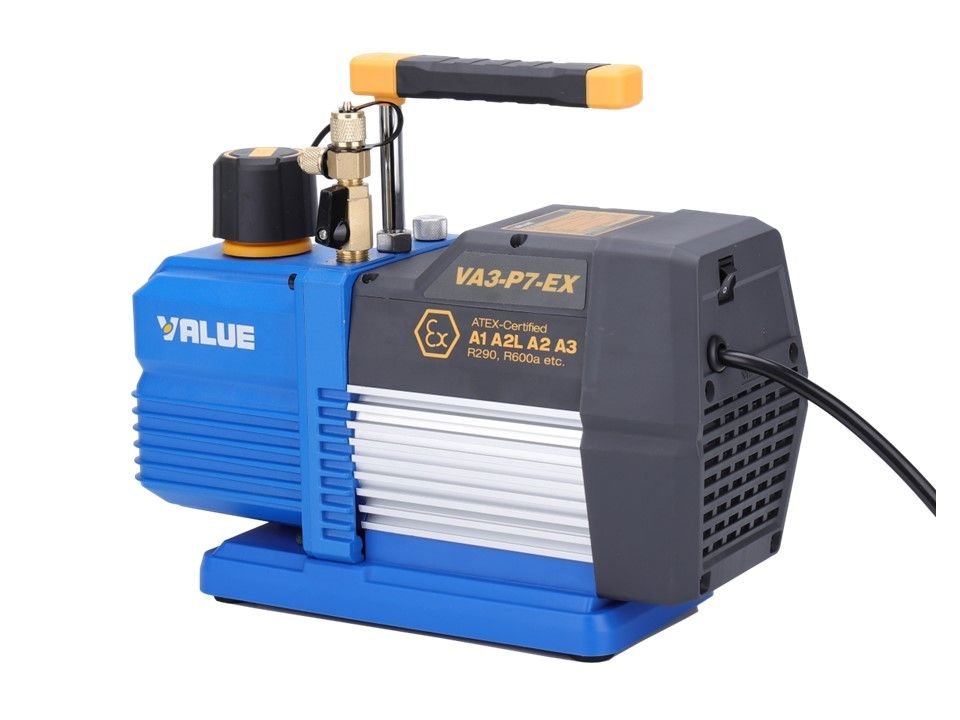

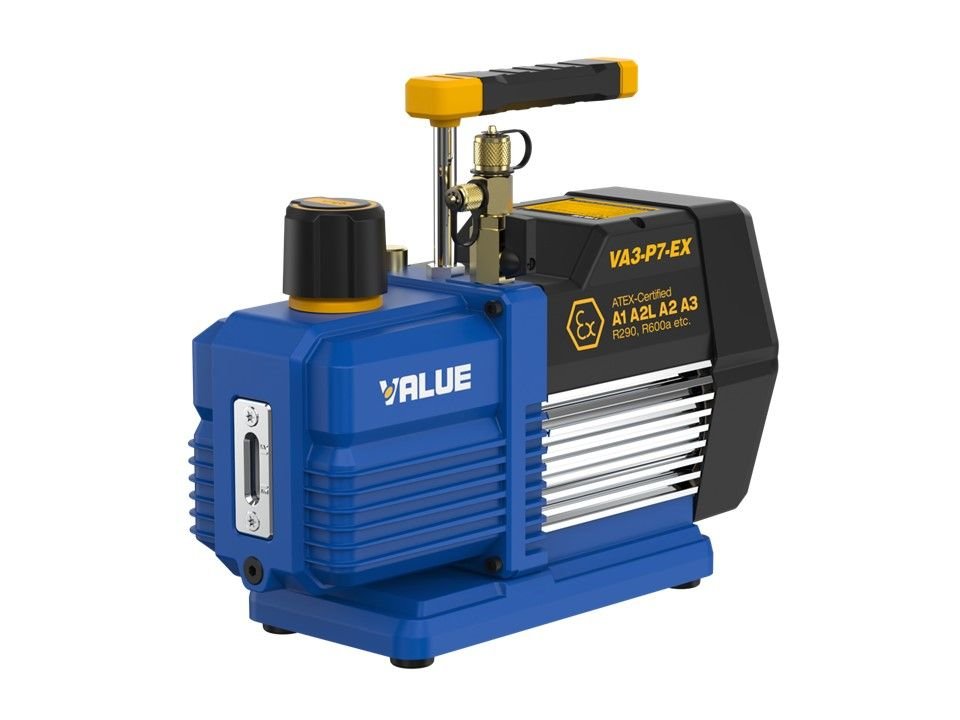

Two-stage vacuum pump VA3-P7-EX VALUE designed for use with HFC, HFO, A1, A2L, A2, and A3 refrigerants.
Key features:
- two-stage design
- compatibility with R290, R600a, and more
- equipped with spark-free protection
- ATEX CSANe 22ATEX1160X certified
- large oil sight glass for monitoring oil levels
- gas ballast valve to prevent moisture from entering the pump oil
Technical data
| Flow | 198 l/min / 7 CFM |
| Vacuum Level | 0,2 Pa / 15 mikronów |
| Motor Power | 0,55 kW (0,75 KM) |
| Compression Stages | 2 |
| Power Supply | 230 V |
| Frequency | 50 - 60 Hz |
| Power Cord Length | 310 cm |
| Motor Speed at 50 Hz | 2880 rpm |
| Noise Level | 68 dB |
| Inlet Connection | 1/4”, 3/8” SAE |
| Oil Capacity | 0,426 l |
| Oil Type | mineral, viscosity: 46 mm²/s |
| Dimensions | 346 x 130 x 287 mm |
| Weight | 11,8 kg |
| Protection Class | IP54 |
| Operating Temperature | -1 - 40°C |
| Storage Temperature | -1 - 50°C |
| Minimum Oil Temperature for Startup | -1°C |
| Shut-Off Valve | yes (manual) |
| Exhaust Plug Thread | M33 x 1,5 mm |
| Vacuum Gauge | no |
| Packaging | cardboard box |
